Brushless motor 1500W









Quick Details

  • Usage: Boat, Car, Electric Bicycle, Fan
  • Certification: CCC, CE, UL
  • Type: DC motor
  • Torque: 8.2Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1750rpm
  • Continuous Current(A): 11.0A
  • Output Power: 1500W
  • Voltage(V): 180V
  • Efficiency: IE 2
  • G.W: 25kg
  • carton size: 45.5*25.5*25.25cm

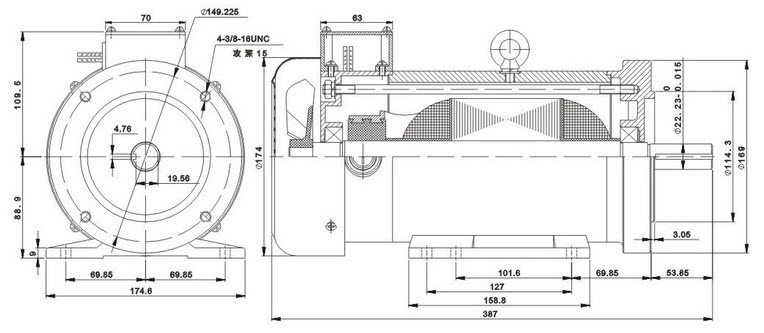

◊ Drawing

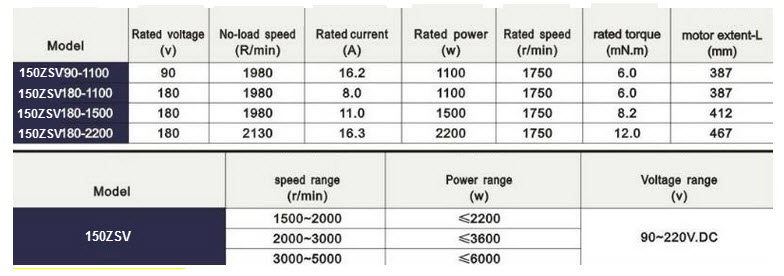

◊ Specification

◊ Model Description

150

ZSV

180

-

1100

-

1750

1.

2.

3.



4.



5.


1.Body OD:158-fuselage outside diameter of 158mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:180-180V.DC input

4.Power:1.5-rated output power of 1.5HP

5.Speed:1750-Rated speed 1750rpm
